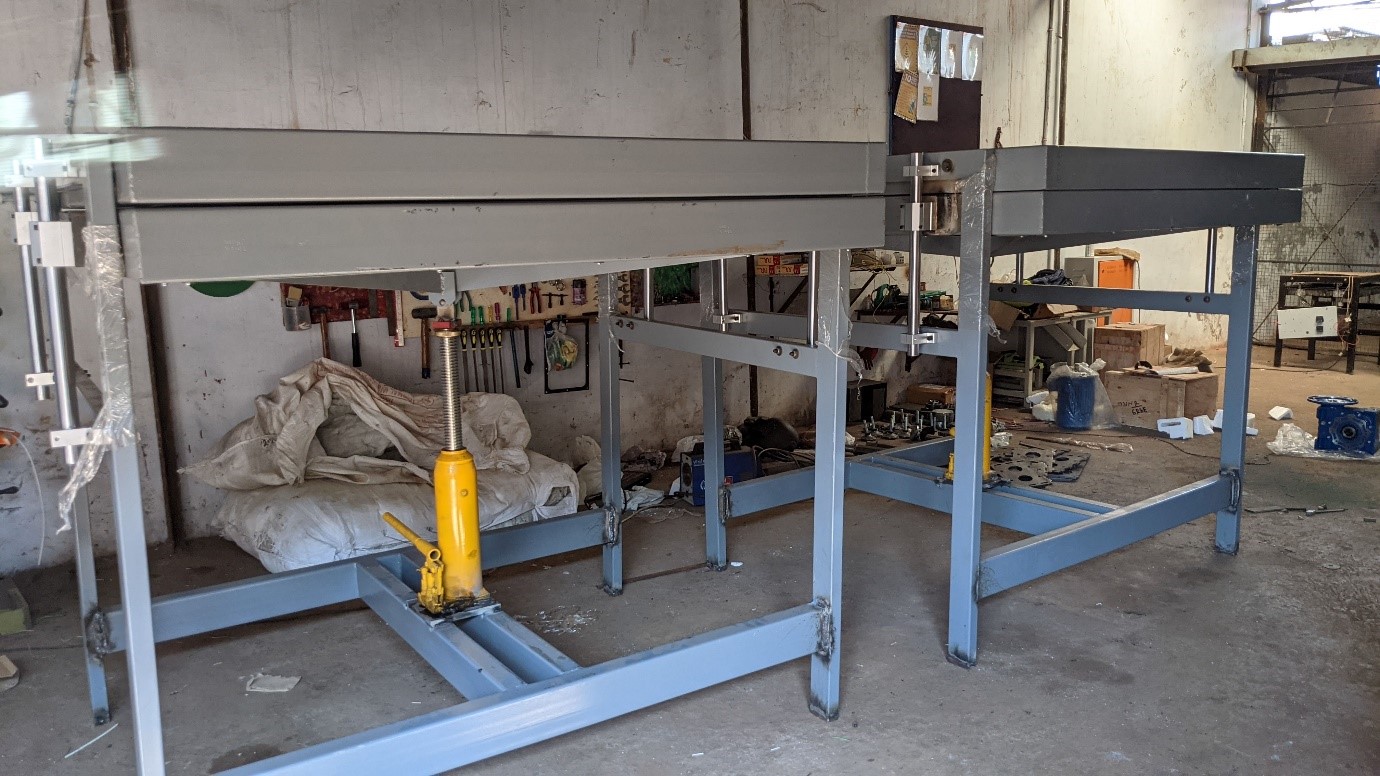

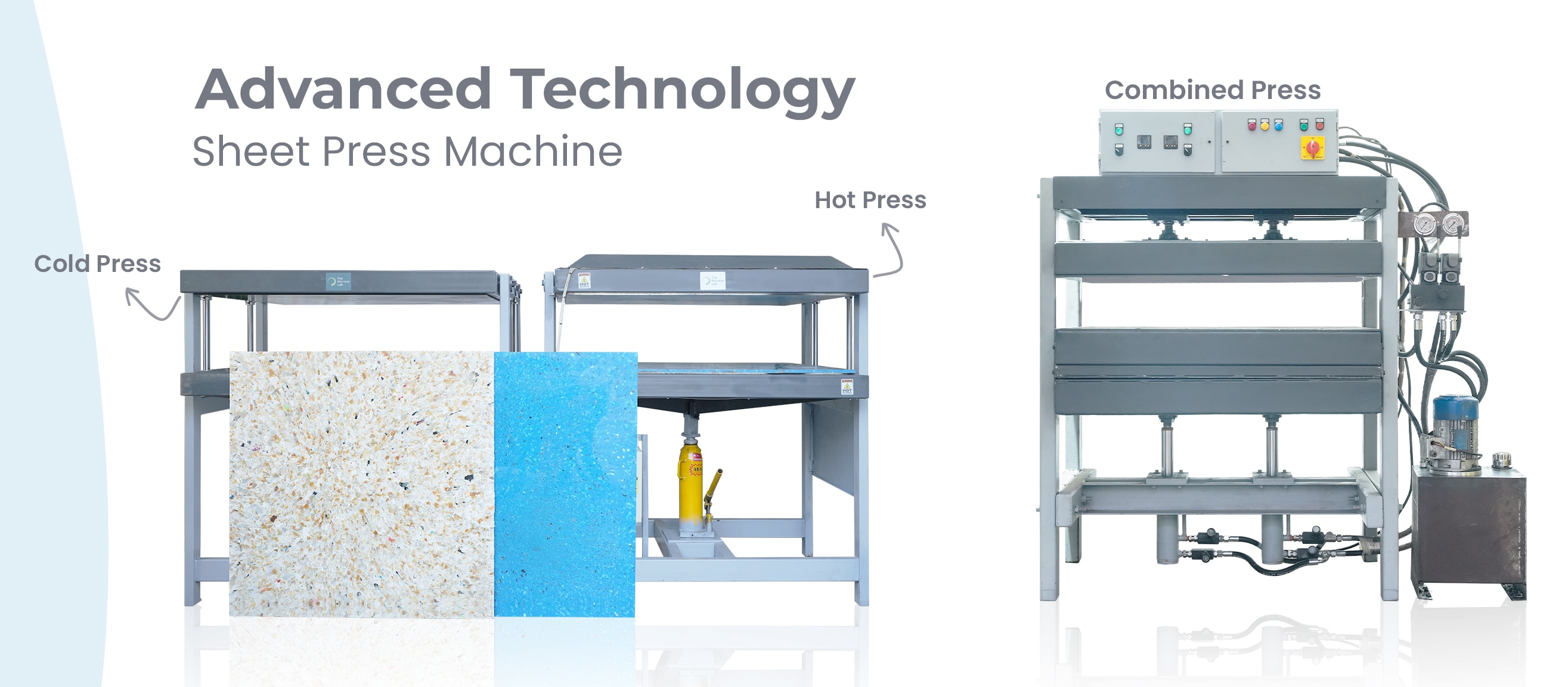

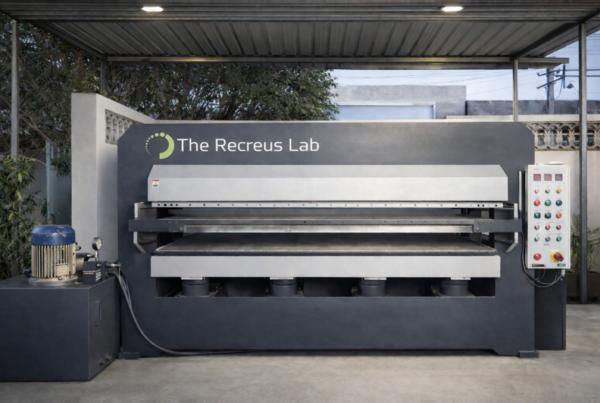

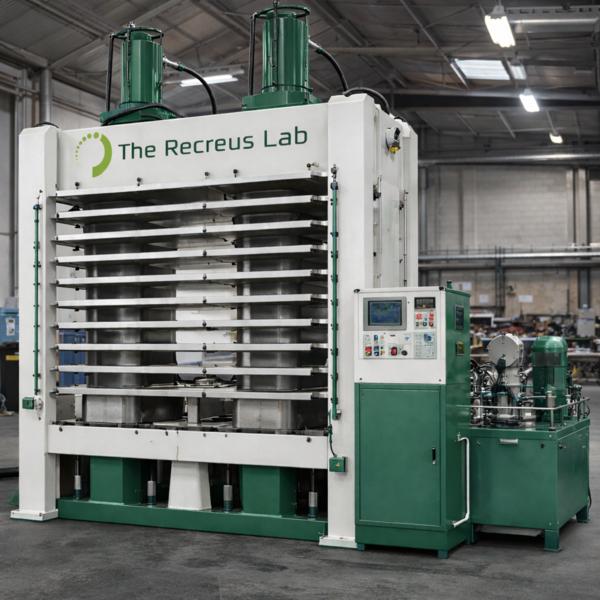

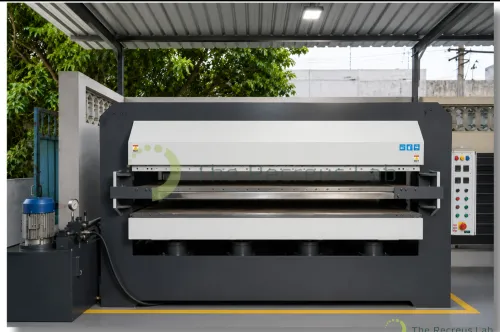

1500x1500 mm Hot Sheet Press ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1. 1500x1500mm Aluminum Plate base attached with plate heaters and whole supporting heavy duty structure: 1nos 2. Process Control Panel synchronized by one master control: 1 nos. ⮚ SPECIFIC DATA 1) Material to be processed: Recycled HDPE/PP/LDPE/PS/acrylic Grinded Scrap 2) Size to be manufactured: 1500 x 1500 mm Sheets 3) Output capacity: Depending upon material used. 4) Recommended Mold size: 1550 x 1550 mm Top & bottom plates and frame. 5) Max. Sheet Output: Hot Process 1 sheet per hour. 6) Advanced Temperature control panel with power saving technology. 7) Total Connected Load: 20* kW (Approx.) ⮚ MAIN SHEET PRESS 1) Supporting structure MS Powder coated. 2) 8-10 mm Top & bottom aluminum plates. 3) 25 Heating plates each side mounted on aluminum plates to ensure equal distribution of heat. 4) 10-50 Ton standard Automatic Hydraulic Jack at the bottom of the pressing system with pressure gauge. 5) Standard 4 rolling mechanism to ensure smooth up-down rolling of bottom plate.  AUTOMATIC HYDRAULIC SYSTEM: 1. 10-50 Ton double stroke jack 2. Pressure Gauge monitoring system 3. Hand lever operated mechanism 4. Directional control valve 5. 1 HP Motor 6. Overload switch protection for motor 7. Pressure Pump 8. Oil tank – 36 Liter  PROCESS CONTROL PANEL 1) Temp. Controllers: PID Controller with Auto tuning & dual display (OMRON) 2) MCB: Reputed make MCB in line with every heating zone supply 3) Other Electrical Outfits: Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing. 4) Phase Synchronizer and Over Voltage Protection as per CE Standard. 1500x1500 mm Cold Press System ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) 1500x1500mm MS Plate base attached with plate and whole supporting heavy duty structure: 1nos. ⮚ MAIN SHEET PRESS 1. Size to be manufactured: 1500 x 1500 mm Sheets 2. Supporting structure MS Powder coated. 3. 6-8 mm Top & bottom aluminum plates. 4. 10 Ton standard Jack at the bottom of the pressing system. 5. Standard 4 rolling mechanism to ensure smooth up-down rolling of bottom plate.

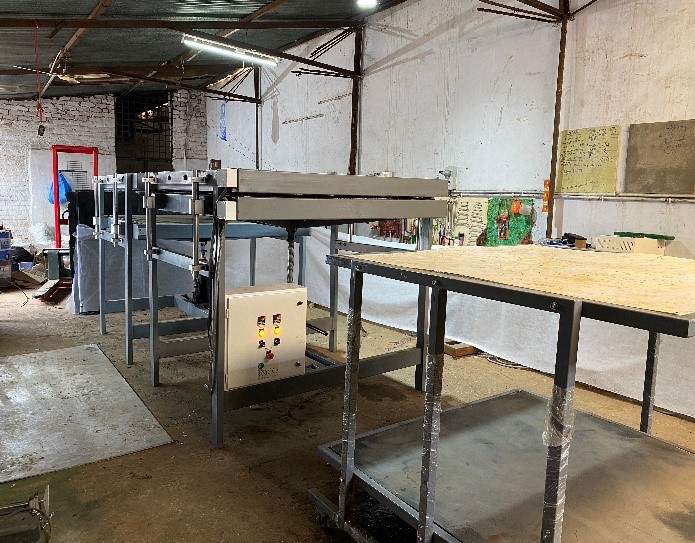

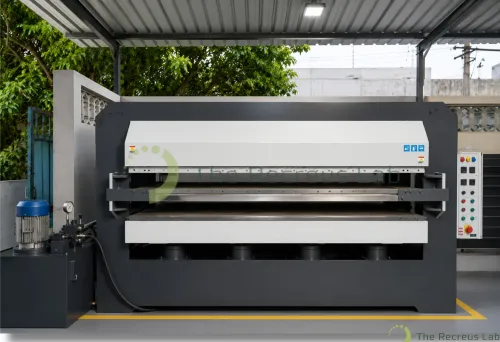

1000 x 1000 Sheet Press System ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) 1200 x 1200 mm Aluminum base attached with plate heaters and whole supporting heavy duty structure: 1nos 2) Process Control Panel synchronized by one master control: 1 nos. ⮚ SPECIFIC DATA 1) Material to be processed: Recycled HDPE/PP/LDPE/PS/acrylic Grinded Scrap 2) Size to be manufactured: 1000 x 1000 mm Sheets 3) Output capacity: Depending upon material used. 4) Recommended Mold size: 1050 x 1050 mm Top & bottom plates and frame. 5) Max. Sheet Output: 1 sheet per hour max. 6) Advanced Temperature control panel with power saving technology. 7) Total Connected Load: 15* kW (Approx.) (3phase) ⮚ MAIN SHEET PRESS 1. Supporting structure MS Powder coated. 2. 6 mm Top & bottom aluminum plates. 3. 20 Heating plates each side mounted on aluminum plates to ensure equal distribution of heat. 4. 10-50 Ton standard Manual Jack at the bottom of the pressing system with pressure gauge. 5. Standard 4 rolling mechanism to ensure smooth up-down rolling of bottom plate. ⮚ PROCESS CONTROL PANEL: 1. Temp. Controllers: PID Controller with Auto tuning & dual display 2. MCB: Reputed make MCB in line with every heating zone supply 3. Other Electrical Outfits: Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing. 4. Phase Synchronizer and Over Voltage Protection as per CE Standard. ⮚ Physical Machines: 1. Dimensions: L: 1500 B: 1350 H: 1600 MM 2. Weight: 550 KG 1000x1000 mm Cold Press System ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) 1200 x 1200 mm MS Plate base attached with plate and whole supporting heavy duty structure: 1nos. ⮚ MAIN SHEET PRESS 1. Size to be manufactured: 1000 x1000 mm Sheets 2. Supporting structure MS Powder coated. 3. 2 mm Top & bottom MS plates. 4. 10 Ton standard Manual Jack at the bottom of the pressing system with pressure gauge. 5. Standard 4 rolling mechanism to ensure smooth up-down rolling of bottom plate. ⮚ Physical Machines: 1. Dimensions: L: 1500 B: 1350 H: 1600 2. Weight: 550 KG

600x600 MM Hot Sheet Press System ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) 600 x 600 mm Aluminium base attached with plate heaters and whole supporting heavy duty structure: 1nos 2) Process Control Panel synchronized by one master control: 1 nos. ⮚ SPECIFIC DATA 1) Material to be processed: Recycled LDPE/MLP/HDPE/PP/PS/HIPS Grinded Scrap 2) Size to be manufactured: 600 x 600 mm Sheets 3) Output capacity: Depending upon material used. 4) Recommended Mold size: 650 x 650 mm Top & bottom plates and frame. 5) Max. Sheet Output: 1 sheet per hour max. 6) Advanced Temperature control panel with power saving technology. 7) Total Connected Load: 5* kW (Approx.) MAIN SHEET PRESS 1. Supporting structure MS Powder coated. 2. 10 mm Top & bottom aluminum plates. 3. 8 Heating plates each side mounted on aluminum plates to ensure equal distribution of heat. 4. 7.5 Ton standard Jack at the bottom of the pressing system. 5. Standard 4 rolling mechanism to ensure smooth up-down rolling of bottom plate. 6. Standard Smoke suction system with advance filtration. ⮚ PROCESS CONTROL PANEL 1. Temp. Controllers: PID Controller with Auto tuning & dual display (OMRON) 2. MCB: Reputed make MCB in line with every heating zone supply 3. Other Electrical Outfits: Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing. 600x600 mm Cold Press System ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) 600x600mm MS Plate base attached with plate and whole supporting heavy duty structure: 1nos. ⮚ MAIN SHEET PRESS 1. Size to be manufactured: 600 x 600 mm Sheets 2. Supporting structure MS Powder coated. 3. 4 mm Top & bottom MS plates. 4. 5 Ton standard Jack at the bottom of the pressing system. 5. Standard 4 rolling mechanism to ensure smooth up-down rolling of bottom plate.
